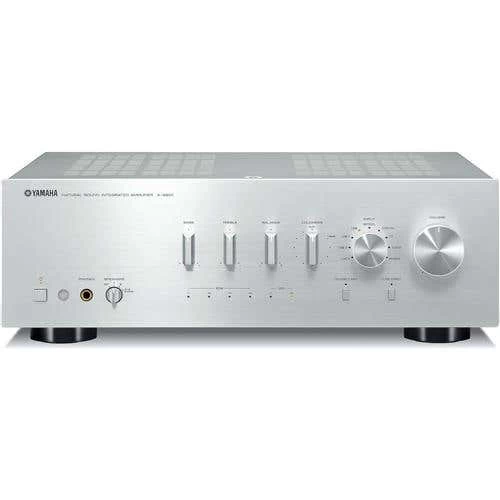

Yamaha AS801 Integrated Amplifier – Silver (AS801S)

With high sound quality ToP-ART circuitry and high stability construction, this integrated amplifier delivers superior musicality and powerful sound. And by incorporating advances like a USB DAC function, it fully supports the latest high resolution sound formats.

Exceptionally High Performance 32-bit D/A Converter

The D/A converter for the A-S801 is the ES9010K2M from ESS Technology, Inc. We selected this after careful examination of all points—not only its high precision processing of 32-bit audio, but also the ability to handle large amounts of audio data with full PCM 384kHz,DSD 5.6MHz native reproduction, strength in the low register, and high quality definition in the high register. Since the built-in D/A converter generates its own master clock, an original Jitter Elimination function is also included, permitting D/A conversion with extremely low impact of clock jitter. Moreover, a 2-channel D/A converter is housed inside the chip, and applies double differential operation. The result is exceptionally high performance and high quality signal output with superior signal-to-noise ratio.

High Strength Chassis Contributes to High Density Sound and High Purity Audio Reproduction

In order to effectively dampen the vibrations that have adverse effects on sound quality, the A-S801 chassis has a double bottom with a 1mm iron plate. In addition, the power transformer and heat sinks in the power amp section are supported by an extremely strong and stable ART (Anti-Resonance and Tough) base. A solid centre bar further enhances high rigidity support and vibration damping. These Yamaha design innovations contribute to superior S/N ratio and natural, rich sound reproduction.

High Quality Parts for Outstanding Audio Performance

Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, onepoint grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.

Feature Summary:

• USB DAC function supports 2.8MHz/5.6MHz DSD native resolution and PCM384kHz/32*bit reproduction
* Windows support. Mac support is 24-bit.
• High efficiency ESS 32bit DAC (ES9010K2M)
• Digital signal indicator shows DSD and PCM playback formats and sampling frequencies
• High strength chassis contributes to high purity audio reproduction
– Double-bottom chassis for excellent vibration damping
• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
– I/O (input to output) Direct Symmetrical Design
– ART (Anti-Resolution and Tough) Base
– Custom-made power transformer / 12,000uF block capacitors / Aluminium-extruded heat sinks
• 160W x 2 (max), 100W x 2 (RMS) high power output
• CD Direct Amplification and Pure Direct
• Continuous Variable Loudness Control
• Gold-plated speaker terminals and RCA terminals
• Digital audio inputs for TV or Blu-ray Player
• Connection for YBA-11 Bluetooth Wireless Adapter
