Wavtech LinkDQ LOC / Line Driver With Parametric EQ (LINKDQ)
Original price was: $169.00.$96.99Current price is: $96.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On
How do you replace the best multifunction LOC and line driver on the market? That was the question the product development team was tasked with. It is even more challenging when you are actually replacing 3 models with 1. Wavtech took the best features of the linkD, the linkQ and the bassFREQ, and combined them. Welcome to the linkDQ.
The linkDQ has the same class leading LOC and line driver that are the core DNA of all Wāvtech products. The linkDQ features an adjustable parametric EQ with narrow or wide range selection, allowing corrections to any low frequency deficiency that may be present in a factory audio system. It features auto turn-on via DC-offset or Audio Signal Detect, either of which can be easily defeated by the convenient jumpers on the end panel.
They’ve also added an RJ45 port for easily upgrading to a remote level control (sold separately). This allows for fine tuning the systems bass output from the front of the vehicle.
linkDQ Highlights:
- 2-Channel Line Driver or Line Output Converter (LOC)

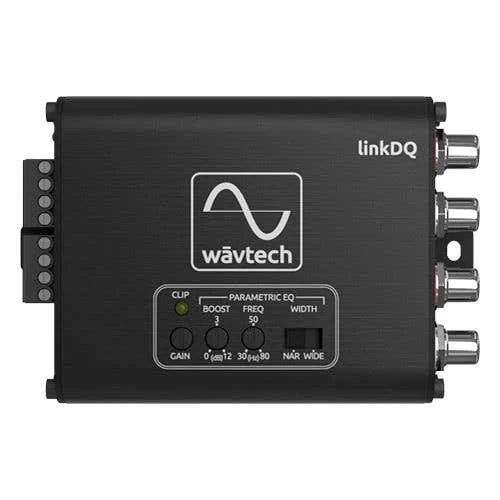

- Adjustable Parametric EQ
- Selectable Narrow or Wide
- Frequency Range 30Hz to 80Hz
- Remote Level Control Capable (Sold Separately)
- Differential Balanced Inputs
- Low Impedance Outputs
- Variable Gain Adjustment w/Clip LED
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible

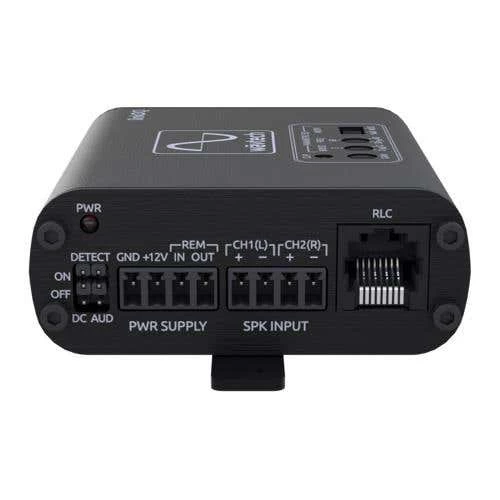

- Locking Detachable Power/Speaker Terminals

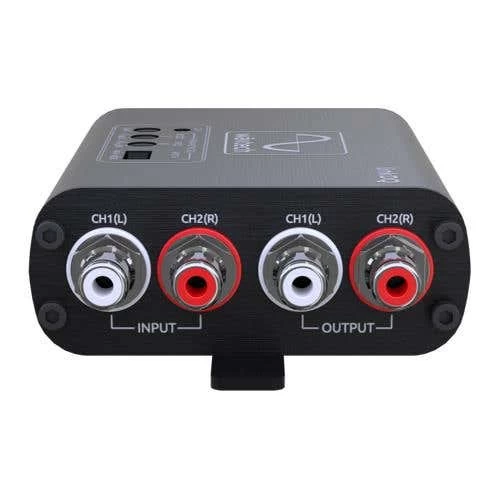

- Professional Grade Panel Mount RCA’s
- Compact Aluminum Chassis w/Detachable Mounting Tabs
| linkDQ Specifications | |
|---|---|
| Output Voltage (Max) | 10Vrms |
| Output Impedance | 50Ω |
| Input Sensitivity | SPK 2-20Vrms, 4-40Vrms RCA 0.5-5Vrms |
| Max Input Voltage (SPK) | 40Vrms |
| Frequency Response | 100kHz |
| THD+N (SPK/RCA) | <0.04% / <0.04% |
| S/N (SPK/RCA) | >115dBA / >116dBA |
| Parametric EQ (Boost/Freq) | 0 to +12dB / 30-80Hz |
| Turn-On Trigger | +12V, DC-offset & Audio Detect |
| Generated +12V Output | >500mA |
| Brand | Wavtech |
|---|---|
| Product Parts Warranty | 1 Year Limited |
| Product Labour Warranty | 1 Year Limited |
| Height (in.) | 1.1 |
| Depth (in.) | 3.5 |
| Width (in.) | 2.9 |
