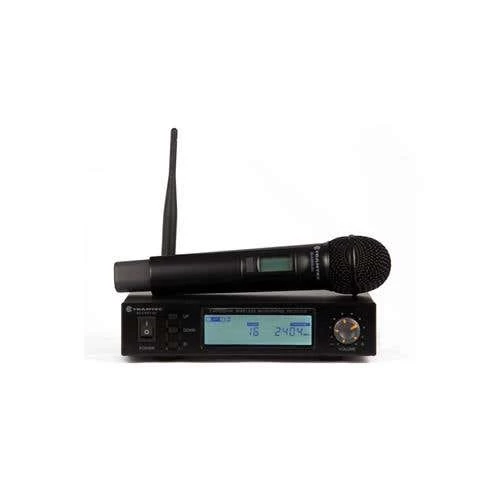

TOA Receiver – RX1: The TOA S2.4 Series 16 Channel Digital Wireless System Dual Receiver with LCD (Half size), can transmit up to a distance of 30m and has IR sync for easy set-up with No RF noise. This single receiver system comes with one Handheld Transmitter.
Handheld Transmitter – HDX: The transmitter has simple programming with built-in infra-red data link and frequency and Power lock facility. Plus it has clear and intuitive LCD display with professional metal enclosure, and battery life of approx 5 hours.
| Single Receiver Specifications | |
|---|---|
| Carrier Frequency | 2.404-2.474 GHz |
| Available Channels | 16 |
| Band Range | 2MHz |
| Outputs | XLR Mic level out and a ¼” MIX OUT Line Level |
| Dynamic Range | 85dB |
| Total Harmonic Distortion | <0.1% |
| Power Supply | DC17V |
| Consumption Power | 2W |
| Signal to Noise Ratio | >95dB |
| Receiving Sensitivity | -80dBm |
| Handheld Transmitter Specifications | |
|---|---|
| RF Carrier Power | 10mW |
| Modulation System | GFSK |
| Ultraharmonics | <20dB |
| Power Supply | 2 x AA battery |
| Battery Life | Approx. 5 hours |
