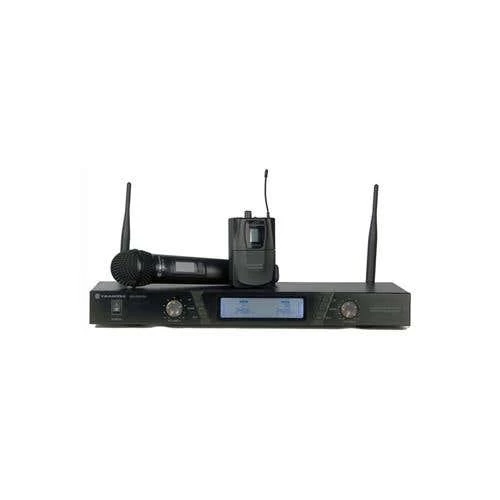

The TOA Receiver – RX2: S2.4 Series 16 Channel Digital Wireless System can have up to 2 simultaneous channels, can transmit up to a distance of 30m, This dual receiver system comes with one beltpack transmitter and one Handheld Transmitter.
The TOA Beltpack Transmitter – BTX: Credit card sized beltpack with Simple programming of transmitter with built in infrared data link. Plus you get frequency and power lock facility and clear and intuitive LCD display Detachable antenna and professional metal enclosure.
*S2.4-LMO – Lavaliere Microphone Included
Handheld Transmitter – HDX: Simple programming of transmitter with built-in infra-red data link and frequency and Power lock facility. Clear and intuitive LCD display with professional metal enclosure, and battery life of approx 5 hours.
| Dual Receiver Specifications | |
|---|---|
| Carrier Frequency | 2.404-2.474 GHz |
| Available Channels | 16 |
| Band Range | 2MHz |
| Outputs | Unit has a Mic A and B XLR -38 db out, As well as a line level A/B Mix ¼” out. |
| Dynamic Range | 85dB |
| Total Harmonic Distortion | <0.1% |
| Power Supply | DC17V |
| Consumption Power | 2W |
| Signal to Noise Ratio | >95dB |
| Receiving Sensitivity | -80dBm |
| Beltpack Transmitter Specifications | |
|---|---|
| RF Carrier Power | 10mW |
| Modulation System | GFSK |
| Ultraharmonics | <20dB |
| Power Supply | 2 x AA battery |
| Battery Life | Approx. 5 hours |
| Handheld Transmitter Specifications | |
|---|---|
| RF Carrier Power | 10mW |
| Modulation System | GFSK |
| Ultraharmonics | <20dB |
| Power Supply | 2 x AA battery |
| Battery Life | Approx. 5 hours |
