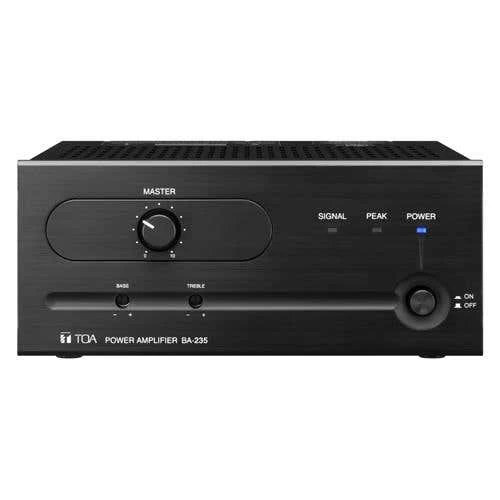

The TOA BA-235 is a 35 Watt power amplifier for background music and general announcement and it is suited for use in bars, retail stores, and banquet rooms.
When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made.
TOA BA-235 Highlights:

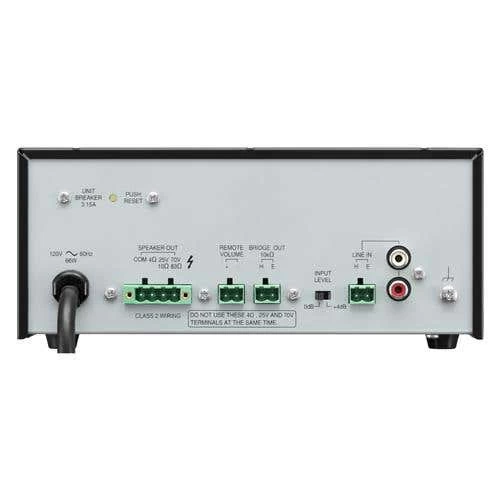

- All inputs/ outputs have removable terminal blocks for quick and easy installation.
- Rear panel-mounted DIP switches allow easy settings.
- 3 line inputs, 1 is mic/line switchable, while 2 and 3 are equipped with RCA pin jacks.
- Recessed tamper-proof bass and treble controls preserve system settings.
- Provides auto/manual mute function with adjustable muting sensitivity.
- 2-channel broadcast system capability together with zone 2 expansion
capability in conjunction with BA-200 Series. - Any of the 3 inputs assignable to MOH/ZONE 2 out
| Specification | |
|---|---|
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 35 W |
| Power Consumption | 90 W (rated output), 52 W (based on cULus standards) |
| Frequency Response | 50 Hz – 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input | Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced, removable terminal block or RCA jack |
| Output | Speaker: 4 Ω, 25 V (18 Ω) and 70 V (140 Ω), balanced, removable terminal block Bridge: parallel in Line in, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio | 80 dB or more (Band Pass: 20 Hz – 20 kHz, Tone Controls: Centered) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control | Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 ℃ to +35 ℃ (32 ゜F to 95 ゜F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
