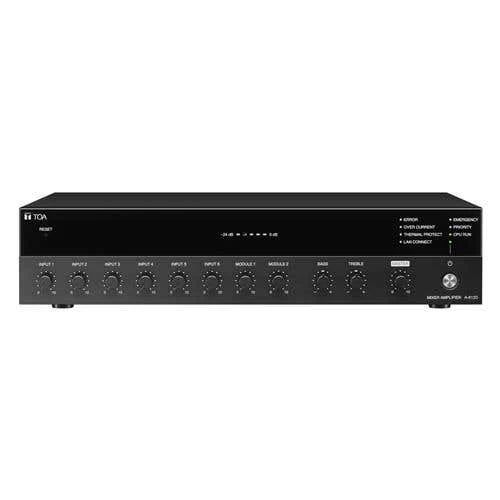

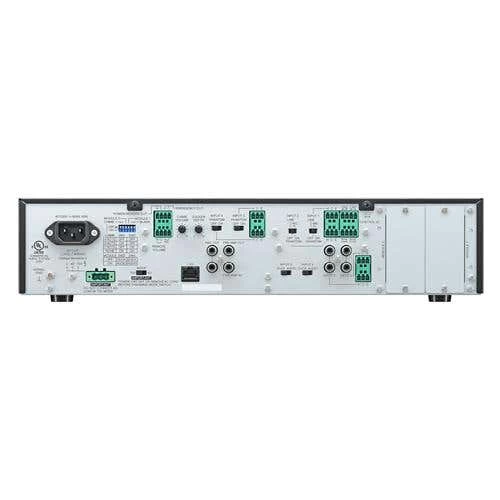

TOA A-812D Digital Mixer Amplifier With 8 Input And Up To 480 Watts (A-812D3CUE00)
Original price was: $358.00.$99.99Current price is: $99.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On
TOA’s A-812D mixer amplifier provides maximum flexibility with up to eight inputs and up to 480 Watts of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems.
The Onboard DSP, a sleek new appearance, with two available 900 series module slots and TOA’s legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications.
Key Benefits:
- IP Control/Programmable*
- Remote Troubleshooting
- Emergency Voice Announcement
- Flexible Inputs
* Firmware Note: Please have the unit set to the default port (:80) prior to uploading firmware. This is the default port so if this has not been changed, the firmware will upload properly.
| Specifications | |
|---|---|
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 120 W |
| Power/Current Consumption | 170 W (rated output), 46 W (based on UL62368) 200 mA or less (when power switch is OFF) |
| Frequency Response | 50 Hz to 20 kHz ±3 dB (1/8 rated output) |
| Distortion | 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Signal to Noise Ratio | 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6) (A-weighted) |
| Audio Input | |
| INPUT 1, 2 | -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable). |
| INPUT 3, 4 | -60 dB*, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable). |
| INPUT 5, 6 | MIC/LINE selectable MIC: -60 dB* , 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2 |
| MODULE 1, 2 | -20 dB*, 10 kΩ |
| Power Amplifier Input | 0 dB*, 600Ω, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between PRE AMP OUT and PWR AMP IN terminals.) |
| Input Bus | |
| INPUT 1 to 4 | AUDIO |
| INPUT 5, 6 | AUDIO/DUCK selectable |
| MODULE 1, 2 | AUDIO/DUCK selectable |
| Audio Output | |
| SPEAKER OUT | High impedance: 70 V line/42 Ω/Low impedance 4 to 16 Ω selectable |
| REC OUT | 0 dB *, 600 Ω, unbalanced, RCA pin jack x 2 |
| PRE AMP OUT | 0 dB *, 600 Ω, unbalanced, RCA pin jack |
| Control Input | 4 channels, no-voltage make contact input, open voltage: 35 V DC or less, Short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) REMOTE VOLUME: No voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) |
| Control Output | POWER REMOTE: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) EMERGENCY OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) |
| Indicators | LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over current protection indicator, CPU running indicator, Error indicator |
| Operating Temperature | -10 to +40 ËšC (14 to 104 ËšF) |
| Operating Humidity | 85 % RH or less (no condensation) |
| Finish | Panel: ABS resign, black Case: Surface-treated steel plate, black, paint |
* 0 dB = 1 V
Note: The design and specifications are subject to change without notice for improvement.
Remote IP control accessible via VPN network access or remote desktop applications
| Brand | TOA |
|---|---|
| IR Extender Port | None |
| USB Port(s) | None |
| Ethernet Port(s) | 1 – (Rear) |
| Radio Tuner | None |
| Streaming Service Compatibility / Connectivity | None |
| Multi-Zone | No |
| Wi-Fi / Bluetooth Connectivity | None |
| HDMI-CEC | Not Applicable |
| ARC (HDMI Audio Return Channel) | Not Applicable |
| iPod Connectivity | None |
| 12V Trigger | None |
| HDCP Compliance | Not Applicable |
| Product Labour Warranty | 5 Year Limited |
| Product Parts Warranty | 5 Year Limited |
| Width (in.) | 16.54 |
| Height (in.) | 3.78 |
| Depth (in.) | 12.33 |
| Headphone / Line Output(s) | None |
| Coaxial Digital Audio Output(s) | None |
| Number of Channels | 4 |
| Composite Video Input(s) | None |
| Amplifier Power | 480 Watts (up to) |
| Video Upscaling | Not Applicable |
| 3D Capable | No |
| Dolby Sound Format Compatibility | None |
| DTS Sound Format Compatibility | None |
| HDMI Input(s) | None |
| HDMI Output(s) | None |
| Composite Video Output(s) | None |
| Coaxial Digital Audio Input(s) | None |
| Component Video Input(s) | None |
| Component Video Output(s) | None |
| Analog Audio Input(s) (RCA Inputs) | None |
| Analog Audio Output(s) (RCA Outputs) | None |
| Pre-amp Input / Phono Input | 1 – RCA |
| Pre-amp Output(s) | 1 |
| Optical Digital Audio Input(s) | None |
| Weight (lbs) | 11.46 |
