Russound Universal Surface Mount IR Kit (SLM1KIRKIT)

Highlights:

• New slim design IR Receiver blends seamlessly on modern TV bezels
• Matching low profile IR Emitter with front and rear IR output for mounting to a device or to an interior cabinet
• Emitters include IR blocking covers to prevent unwanted signals
• Plug and Play simplicity with easy-to-use color-coded connectors
• IR Confirmation LED on the Connecting Block for system troubleshooting

A one-size fits all solution for any IR installation that works with LED, LCD and Plasma TV’s and is resistant to fluorescent and compact fluorescent (CFL) interference for reliable operation. Color-coded connections with easy-to-use 3.5mm plugs assure correct configurations and reduce the time on a job site.

The CB-140 supports up to four components using the Russound IRE-1 single emitters or up to eight components using Russound IRE-2 dual emitters (also compatible with Russound SaphIR emitters). It also includes a jack for a Russound SLM-1 surface-mount receiver or 854 tabletop receiver.

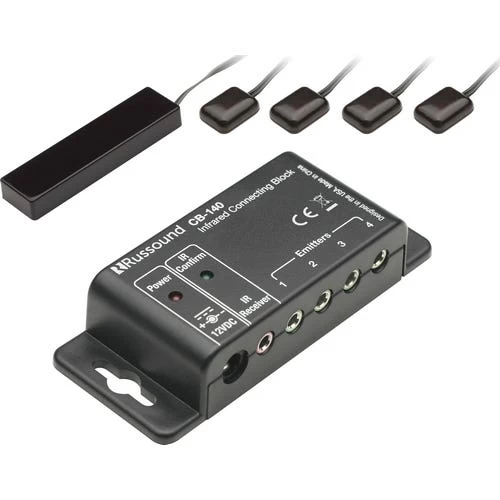

CB-140 IR Connecting Block

The Russound CB-140 makes it easy to connect infrared accessories together. The hub of an IR repeater system, it receives signals from remotely located infrared receivers and channels them to your source components and other equipment.

IR Control Green LED for Power Red LED for IR signal confirmation
IR Emitter Connectors (4) 1/8″ (3.5 mm) TS jacks Tip = signal, Sleeve = ground
IR Receiver Connector (4) 1/8″ (3.5 mm) TS jacks Tip = signal, Sleeve = ground
Power Requirement(s) 12VDC 500mA max. (Use Russound CB-PS power supply)

IRE-1 Single IR Emitter

The IRE-1 IR Emitter transfers infrared commands to a single audio-video component or other device.

Its head attaches to the component’s IR sensor with an adhesive pad. The emitter’s cable plugs into an emitter jack on a CB-140 IR connecting block or multiroom controller or hub (also works with Russound SaphIR components). Color-coded connections with easy-to-use 3.5mm plugs (compatible with CB-140 connecting block) assure correct configurations and reduce the time on a job site.

IRE-1 Single IR Emitter

The SLM-1 is a compact surface-mount IR receiver that can be located almost anywhere. The SLM-1 blends unobtrusively, allowing placement where you need it.

With wideband sensitivity and wide-angle reception, the SLM-1 reliably accepts commands from most IR remote controls. It also provides excellent rejection of interference form IR sources like LCD, LED or Plasma TVs and Fluorescent and compact fluorescent lights.

Connector(s) 3.5mm plug
Frequency Range Receives: 36 kHz to 58 kHz, Transmits: 40 kHZ and 56 kHz
Power Rating 12VDC 500mA max.
Product Dimensions 2″W x 0.25″H x 0.5″D (50 x 6.3 x 13mm), Cord length: 84″ (213cm)

CB-PS Connecting Block Power Supply

The CB-PS is Russound’s versatile 12-volt, 500 mA power supply for infrared products and other applications. It provides regulated power from an outlet-mounted transformer through a 3-foot (1m) cord with a 2.1 mm coaxial plug.
