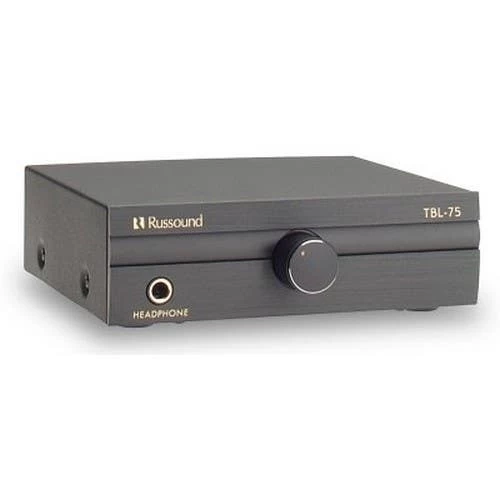

Russound TBL-75 Table Top Volume Control – Black (TBL75)

The TBL-75 is a free-standing, 126-watt tabletop volume control with a headphone jack. It connects to the speaker outputs of an amplifier or receiver and can connect to a pair of speakers or just provide volume control for a pair of headphones. Connecting headphones disconnects the speakers in the room for private listening.

An impedance switch on the TBL-75 allows installers to easily match the load of multiple speaker pairs to the amplifier impedance without the need for a speaker selector or other impedance-matching equipment.

All Russound volume controls are made with precision autoformers for high-fidelity sound, excellent frequency response, no heat buildup, and maximum power transfer from the amplifier to the speakers.

Russound TBL-75 Table Top Volume Control Highlights:

• Freestanding design can be located on a desk, counter, or tabletop
• Controls a pair of speakers, headphones, or both
• Selects 11 steps of volume plus off
• Allows impedance matching for up to 16 speaker pairs per system
• Precision autoformers assure long life and superior performance
• Audio Output(s): Headphones: 1/4″ (6.35 mm) TRS jack
• Connector(s): Spring terminals
• Frequency Response: 20 Hz – 20 kHz, +1.0/-0.5 dB at rated power
• Impedance Matching Type: Autoformer
• Max Wire Size: 14 AWG (1.9 mm)
• Power Handling: 126 watts peak, 42 watts RMS continuous per channel
• Speaker Impedance: Min: 4 ohms
• Volume Control: 12 steps including Off; total attenuation 43 dB
