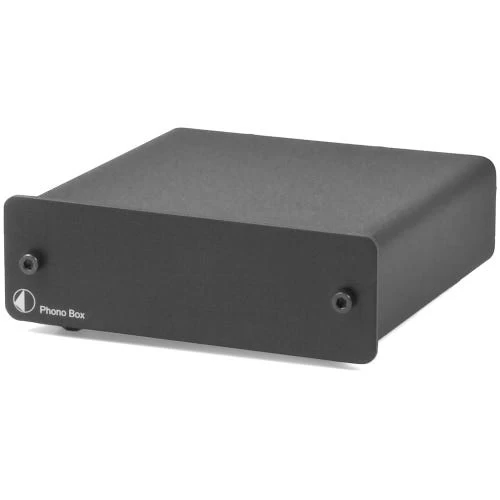

Pro-Ject “C Line” Phono Box – MM/ MC Phono Preamp With Line Output – Black (PJ35827210)
Original price was: $169.99.$98.99Current price is: $98.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On
Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,…) of your amplifier.
Feature Summary:

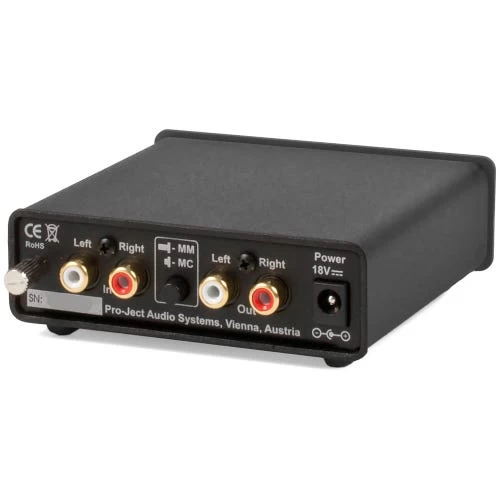

• Preamplifier for MM or MC with switch on rear panel
• Best buy classic
• DC power supply (< 1 watt standby power)
• Precise RIAA equalisation
• Low noise ICs
• Output stage with ultra-low impedance
• Gold-plated RCA sockets
• Small size for installation near record player
• Dimensions W x H x D: 103 x 36 x 103 (109 mm with sockets)
• Weight: 540g
Technical specifications – MM Mode:
• Input impedance: 47kohms/120pF
• Gain: 40dB
• Output voltage typically: 300mV/1kHz at 3mV/1kHz (MM input)
• Max. output: 9,5V (1kHz)
• Noise floor: 86dB (94dB – A weighted)
• THD: 0,01%
• RIAA-equalisation curve accuracy: 20Hz – 20kHz / max. 0,5dB
• Outboard power supply: 18V/200mA DC,
• suitable for your country’s mains supply
• Standby power consumption: < 1 watt
Technical specifications – MC Mode:
• Input impedance: 100ohms/120pF
• Gain: 60dB
• Output voltage typically: 300mV/1kHz at 0,3mV/1kHz (MC input)
• Max. output: 9,5V (1kHz)
• Noise floor: 68dB (75dB – A weighted)
• THD: 0,05%
• RIAA-equalisation curve accuracy: 20Hz – 20kHz / max. 0,5dB
• Outboard power supply: 18V/200mA DC,
• suitable for your country’s mains supply
• Standby power consumption: < 1 watt
| Brand | Pro-Ject |
|---|---|
| Product Labour Warranty | 2 Years |
| Product Parts Warranty | 2 Years |
| Width (in.) | 4.06 |
| Height (in.) | 1.46 |
| Depth (in.) | 4.06 |
| Weight (lbs) | 1.19 |
| Width 2 (in.) | 4.29 |
| Height 2 (in.) | 1.42 |
| Depth 2 (in.) | 4.29 |
| Weight 2 (lbs) | 1.2 |
