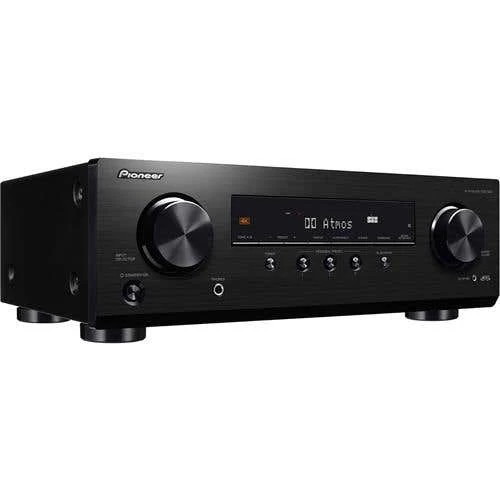

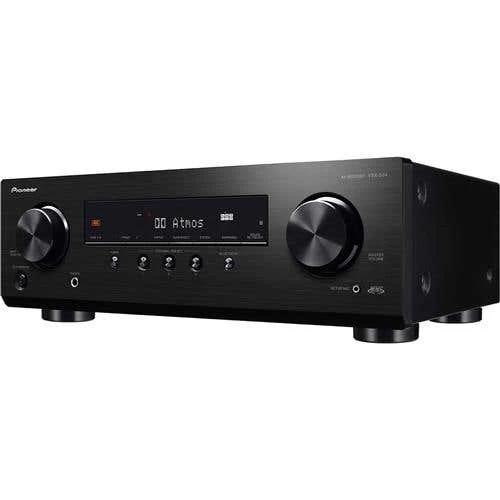

Pioneer 5.2 Channel 4K Dolby Atmos And DTS Virtual: X AV Receiver With Bluetooth (VSX534)

The VSX-534 comes in a user-friendly new design, with 12 % slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS:X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effect with Dolby Atmos Height Virtualizer* and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.

Dolby Atmos®/Dolby Surround Upmixing

The VSX-534 is compatible with 3.1.2ch configuration of the latest theater sound platform, Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X®/DTS Neural:X Upmixing

DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.

Dolby Atmos Height Virtualization

When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

DTS Virtual:X

With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.

Next Generation Video Standard Ready

The VSX-534 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.

MCACC Auto Room Tuning

Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.

Zone B Output for Wireless Headphones

The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones.

Built-in Bluetooth® Wireless Technology

Stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 4.2 + LE). The VSX-534 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. By pressing the Bluetooth button on the front panel, you can directly start up the BT function, even when the unit is in standby.

Personal Preset

Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.

Dialog Enhancement

With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogs in films, with the up/down key on the remote control.

On-Screen Information for Audio/Video Status

The screen display now shows detailed input and output information for the playing content. So you can see whether your video is being output by Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X sound.

Pioneer 5.2 Channel 4K UHD AV Receiver Highlights

• Dolby Atmos®/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer*
• DTS:X®/DTS Neural:X Upmixing/DTS Virtual:X
• Supports pass-through for 4K HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals
• 150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
• 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
• 12% slimmer size than the previous model
