Panasonic HC-X2 4K Camcorder (HCX2)

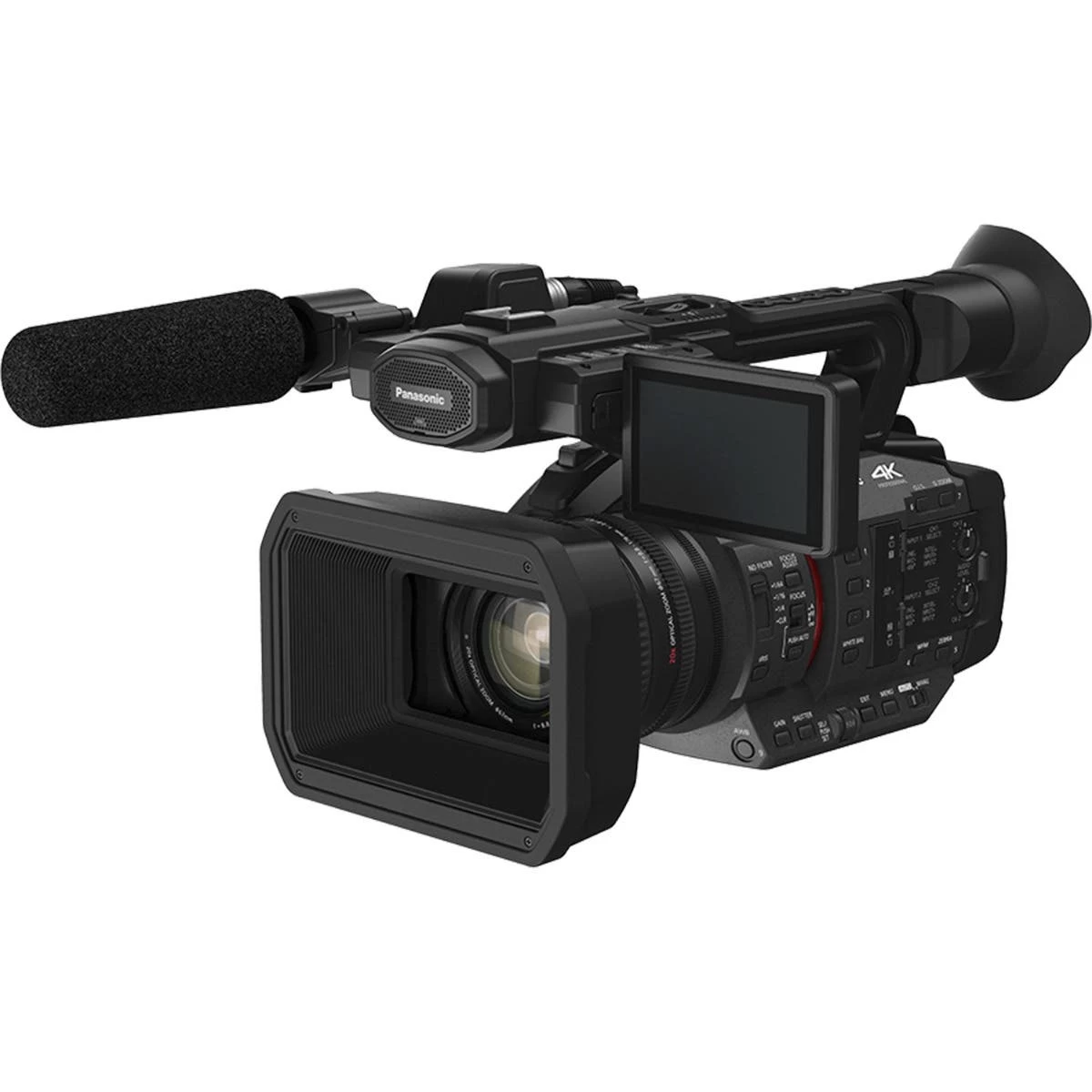

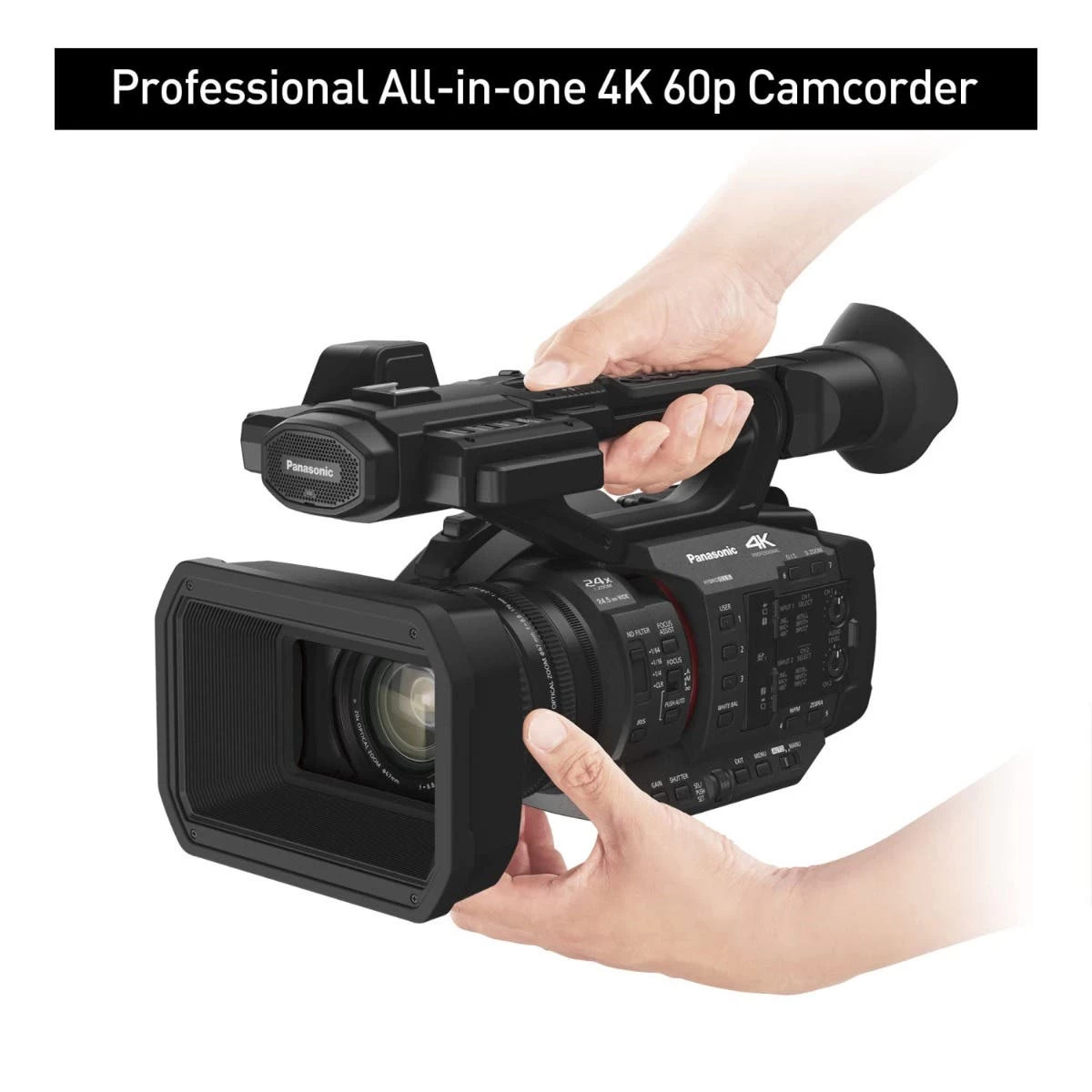

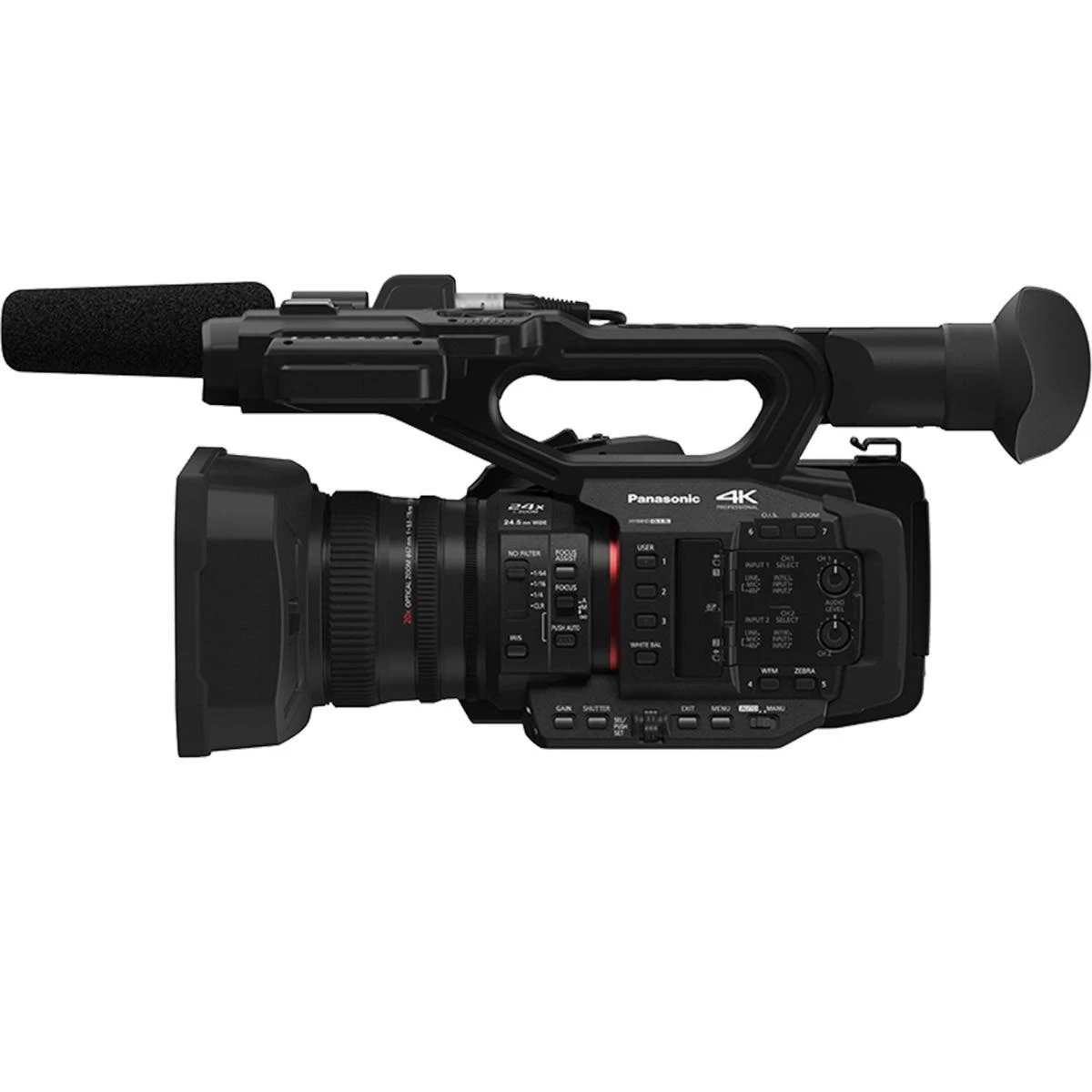

Panasonic HC-X2 4K Camcorder

Featuring a large 1″ 15.03MP 4K sensor, the HC-X2 is can record high-quality, professional-grade video in up to UHD 4K (3840 x 2160) 10-bit 4:2:2 resolutions. You can also record 1080p in VFR (variable frame rate) in 10 increments from 2 to 60 fps, as well as record HD video in a super-slow-motion mode at a frame rate up to 120 fps. The X2 features numerous enhancements to its high-speed AF with face detection, HLG 13-stop dynamic range, a brighter monitor, UHD 4K image stabilization, timecode input and output, HDMI and 3G-SDI output, and built-in Ethernet and Wi-Fi.

High-Definition 4K Imagery with 1″ MOS Sensor

This effective 1″ MOS Sensor (15.03MP) combines ideal depth of field with balanced image quality and sensitivity. It supports HLG/V-log (13 stops) and HDR shooting and provides images without cropping in all modes.

Live Streaming

Ideal for medium-scale, multi-camera event/live shooting, the X2 features an Ethernet and a Wi-Fi connection for LAN streaming and wireless camera control. It supports RTMP (Real Time Messaging Protocol), the protocol used when streaming with Adobe Flash, and it is RTSP/RTP/RTMP/RTMPS compatible using H.264/MPEG-4 AVC/AAC-LC compression. It supports streaming distribution of RTMP-compatible content, such as live video distribution services, and it records (with modes below FHD) onto SD cards in the camera is also possible while streaming.

High Dynamic Range Recording (HLG)

HDR is an image display technology that provides a wider brightness range (dynamic range) than conventional SDR. HDR renders more natural and true-to-life images without compromising the gradation in bright image areas or dark image areas.

13-Stop V-log / V-Gamut

The X2 realizes a wide dynamic range of up to 13 stops and supports V-Log/V-Gamut, which is also equipped in Panasonic cinema cameras VARICAM and LUMIX.

USB Tethering for Control/Webcam Usage

The X2 can work in USB or wired/wireless LAN tethering mode to use a computer for live streaming to applications such as YouTube or Facebook for live streaming.

Wired and Wireless Remote Control

A 2.4 GHz Wi-Fi module is built-in, so there is no need to purchase a separate wireless LAN module. Wi-Fi connection is possible using only the main unit. A tablet/smartphone with the HC ROP (available for free on Apple’s App Store or Google Play) can be used for wireless remote control. The app can be used to control up to eight cameras. There is also a built-in Ethernet connection so you can add the camera to a wired LAN.

4-Drive Lens System

The 4-Drive Lens System simultaneously and independently drives 4 lens groups (group 2, iris, group 3, group 4). The lens size and drive range for each of the 4 groups can be efficiently suppressed to optimize image quality and zoom power, maintaining a compact body.

5-Axis Hybrid O.I.S.

In both UHD/FHD modes, in addition to Optical Image Stabilization (O.I.S.), Electronic Image Stabilization operates to detect and correct handshake in the 5-axis direction, including rotational blurring. This provides powerful correction in unstable situations, such as low-angle and high-angle shooting.

• There are three modes to choose from:NORMAL (standard)
• STABLE (effective for fixed-frame shooting)
• PAN/TILT (effective in panning and tilting)

Timecode Input/Output

The X2 supports timecode in/out so it can easily fit into multi-camera productions.

4K High-Precision AF

By moving the Micro Drive Focus Unit minutely and quickly, highly precise AF performance is also achieved when shooting in 4K or shooting with a shallow depth of field.

Focus Assist Functions

Provided with Face Detection to precisely capture subjects onsite free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.

• Area Mode: Auto Focus is easily possible with just a touch on the LCD panel. You can also change this to Auto Iris and Brightness Display on the screen
• Y Get: Measures brightness at the center and displays numerical data
• Focus Assist: When the Focus Assist button is pressed during manual focusing
• Expand: Visibility can be enhanced by expanding the display of any desired part of the screen
• Peaking: The contours of subjects in focus are colored for display emphasis
• Expand and Peaking: Expand and Peaking can be used in combination
• One Press AF: This function temporarily activates Auto Focus when shooting in Manual mode
