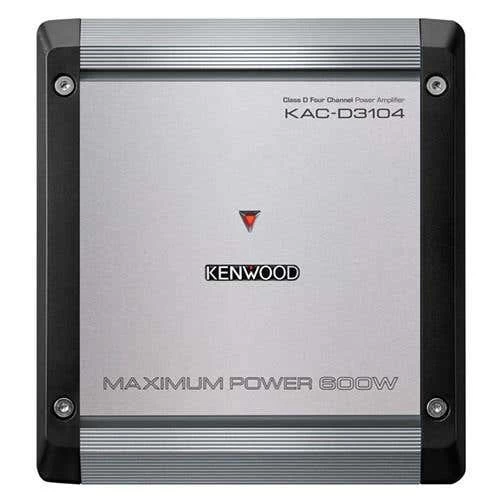

Kenwood Class D 200 Watts Total RMS At 4 Ohms 4 Channel Power Amplifier (KACD3104)
Original price was: $198.00.$97.99Current price is: $97.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On
D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system. Features include Power MOS-FET Switching Power Supply, Max Power 600 Watts, and Variable High and Low Pass Filter.
Expanded Frequency Response
Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.
Dual Sigma Drive
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won’t stop moving once it’s in motion. This extra movement (sound) creates a type of distortion that’s not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
Small Size Big Power
The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don’t want to sacrifice cargo room or who prefer hidden installations.
Kenwood Class D 4-Channel Power Amplifier Highlights:
- Max Power 600 Watts
- Size (inch) (W) 6-11/16″ x (H) 2-3/16″ x (D) 7-3/8″
- Variable High and Low Pass Filter
- Bass Boost
- CTA-2006 Compliant
- 2 Ohms Load Capability
- Speaker Level Input with Signal Sensing Turn-on
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
| Brand | Kenwood |
|---|---|
| MOS-FET Switching (Car Amplifiers) | Yes |
| Depth (in.) | 7.38 |
| Height (in.) | 2.18 |
| Width (in.) | 6.68 |
| Product Parts Warranty | 1 Year Limited |
| Product Labour Warranty | 1 Year Limited |
| Speaker Lvl Inputs (Car Amplifiers) | Yes |
| Smart Engage Turn On (Car Amplifiers) | Yes |
| Signal-to-Noise Ratio | ≥100 dB |
| Low Pass Filter (Car Amplifiers) | 50Hz – 200Hz, -12dB/octave |
| Total Max Power (Car Amplifiers) | 600 Watts |
| Input Voltage (Car Amplifiers) | Unspecified |
| High Pass Filter (Car Amplifiers) | 50Hz – 200Hz, -12dB/octave |
| Bridged Power at 4 ohms (Amplifiers) | 150W x2 RMS |
| Bridged Power at 2 ohms (Amplifiers) | Unspecified |
| Bridgeable (Amplifiers) | Yes |
| Bass Boost (Car Amplifiers) | Yes |
| 4 ohm Power Output | 50W x4 RMS |
| 2 ohm Power Output | 75W x4 |
| # of Channels | 4 |
| Weight (lbs) | 5 |
