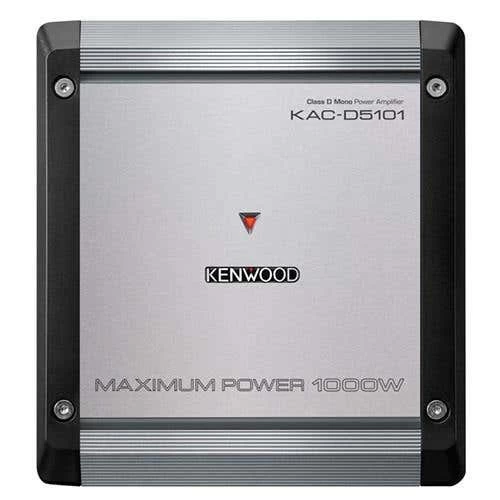

Kenwood Class D 1000 Watts Max / 500 Watts RMS At 2 Ohms Mono Power Amplifier (KACD5101)
Original price was: $329.00.$97.99Current price is: $97.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On
D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system. Features include a Max Power of 1000 Watts, Variable Low Pass Filter and Bass Boost.
Dual Sigma Drive
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won’t stop moving once it’s in motion. This extra movement (sound) creates a type of distortion that’s not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
Small Size Big Power
The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don’t want to sacrifice cargo room or who prefer hidden installations.
Kenwood Class D Mono Power Amplifier Highlights:
- CTA-2006 Compliant
- 2 Ohms Load Capability
- Speaker Level Input with Signal Sensing Turn-on
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
| Brand | Kenwood |
|---|---|
| RCA Inputs (# Of Pairs) (Car Amplifiers) | Yes |
| Depth (in.) | 7.38 |
| Height (in.) | 3.18 |
| Width (in.) | 6.68 |
| Product Parts Warranty | 1 Year Limited |
| Product Labour Warranty | 1 Year Limited |
| Frequency Response (Car Amplifiers) | 20Hz – 200Hz, (+0/-3dB) |
| Speaker Lvl Inputs (Car Amplifiers) | RCA |
| Signal-to-Noise Ratio | ≥100 dB |
| RCA Outputs (# Of Pairs) (Car Amplifiers) | Yes |
| MOS-FET Switching (Car Amplifiers) | Yes |
| Total Max Power (Car Amplifiers) | 1000 Watts |
| Low Pass Filter (Car Amplifiers) | Variable |
| Input Voltage (Car Amplifiers) | 0.2V – 5.0V (RCA); 4.0V – 12.0V (Speaker Level) |
| Fuse Rating | 34A |
| Bridged Power at 4 ohms (Amplifiers) | Not Applicable |
| Bridged Power at 2 ohms (Amplifiers) | Not Applicable |
| Bridgeable (Amplifiers) | Not Applicable |
| Bass Boost (Car Amplifiers) | 0 to +18 dB @ 40Hz |
| 4 ohm Power Output | 300W x1 RMS |
| 2 ohm Power Output | 500W x1 RMS |
| # of Channels | Mono/Monaural |
| Weight (lbs) | 5 |
