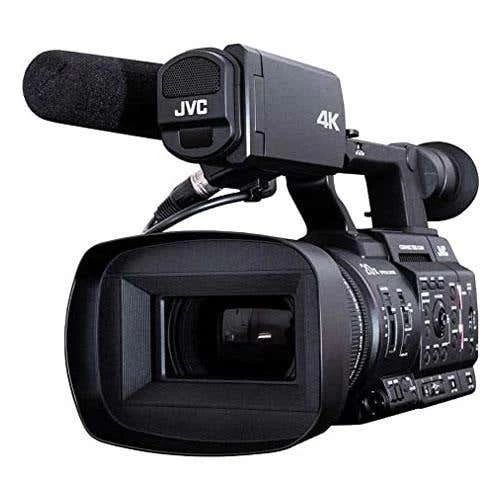

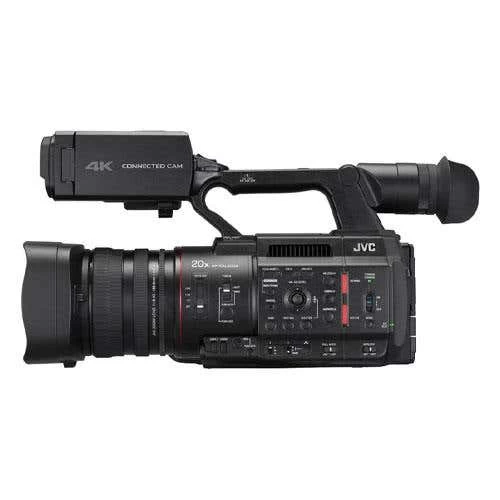

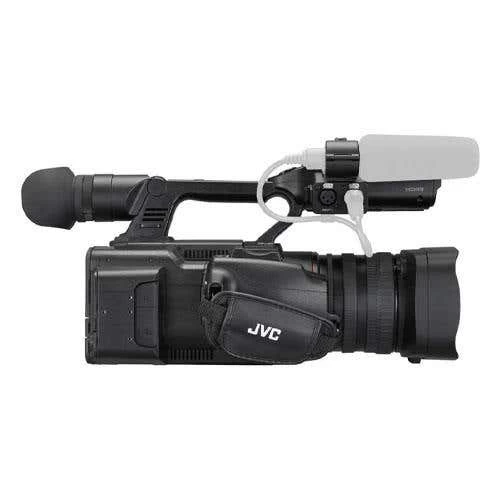

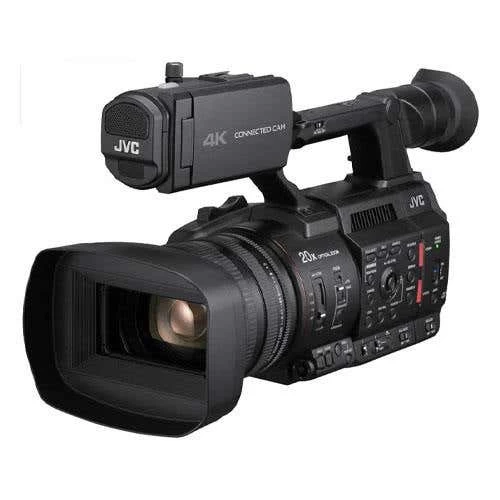

JVC 4K Hand Held Sports Production & Coaching Connected Cam 1-inch Camcorder Sports Pack (GY-HC500SPC)

GY-HC500SPC 4K Sports Production & Coaching Connected Cam 1-inch Camcorder

Versatile sports production camera. Professional Quality coverage. Score overlay and game clock.

Main Features

• 1-inch (effective) CMOS sensor with high picture quality
• High performance 1080 60p/50p live streaming (4K, HD stream
• 4-inch high resolution LCD monitor
• 4K UHD 30p/25p/24p 4:2:2 10-bit / 4:2:0 8-bit (150Mbps) and various HD recording to SDHC/SDXC card*
• 10-bit ProRes 422/422HQ/422LT at 4K resolution and 50/60p frame rates recording to M.2 SSD**
• Facebook Live streaming with secure RTMPS protocol (v0110)
• Sports Production and Coaching Model
• HDR recording, HLG or J-Log1 (10-bit)
• 1-inch (effective) CMOS sensor with high picture quality
• Clip Continuous Mode: This mode allows you to consolidate several rounds of start/stop recording into one clip.
• F11 Sensitivity
• Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
• 40x lossless dynamic zoom
• LCOS Quad VGA viewfinder
• XLR audio connectors
• (4K Rec + HD streaming + 4K HDMI output)
• Low latency and high-quality streaming up to 20Mbps
• SRT (Secure Reliable Transport> and Zixi QoS Technology
• HEVC/H.265 encoding for streaming with 50% reduction in bit rate—or—contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optonal KA-EN200G)
• LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
• Return over IP (Return video and IFB)
• Auto FTP to upload native video clips automatically
• Network Time Protocol (NTP)for precise time code synchronization

^{* Recording media not included
** SSD media requires optional KA-MC100G media adapter.}

Graphic Overlays

Score Overlays and Customization for Live Streaming and Recorded Video.

• Score Overlays and Customization for Live Streaming and Recorded Video
• GY-HC500SPC offers lower-third score overlays for recorded or streamed HD video output without an external CG or production switcher.
• The camcorder comes with graphics pre-installed for a variety of sports, including football, basketball, baseball, football (soccer), ice hockey and others.
• The overlays are controlled using a browser-equipped device such as a tablet or smartphone.
• JVC’s software utility lets customers upload team logos.
• If desired, the overlay can be placed over the streamed video only, leaving the recorded video without graphics.
• JVC has released PC application software which enables the user to store up to 30 team names and logo bitmaps within the camera.

Custom Full-Screen Overlays and Slideshows

• Add up to 50 full-screen custom graphics (PNG or JPG format) from an SD card to the GY-HC500SPC and store them in the camcorder for live streaming or recording in the HD mode.
• Overlays and slides are a perfect way to advertise your sponsors either as banners during the game, or full-screen at halftime.
• It’s also a great way to introduce the team members via a pre-game slideshow.

Broadcast Info Overlay on HD Video and Streaming

Designed for enhanced single-camera production, the GY-HC500SPC produces real-time broadcast information overlays for HD recorded video or streamed video without an external CG or production switcher. Lower-third graphic overlays are generated and controlled using a browser-equipped device, such as a tablet or smartphone. Overlay designs can be created in various language characters using JVC’s SDP Generator (free software).

Note: This feature is not available in 4K or SD mode.

Sports Coaching

Seamless Interface with XOS Thunder HD™ and DVSport

The integrated combination of JVC, XOS, and DVSport technologies enables sports organizations to add game play metadata with recordings from various camera angles—all synchronized with a single UTC time signal thus significantly reducing the time uploading practice and game footage. XOS Digital and DVSport are the leading providers of digital coaching technology.

Advanced Camera Features

SRT: QoS (Quality of Service) Technology

SRT (Secure Reliable Transport) is an open source video transport protocol that enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks. It accounts for packet loss, jitter, and fluctuating bandwidth, maintaining the integrity and quality of your video.

SRT provides end-to-end security, resiliency and dynamic endpoint adjustment based on real-time network conditions to deliver the best video quality at all times on any network.

SRT is built-in and can be dynamically adjusted for optimal stream performance and quality. Automatic Repeat Request (ARQ) is included with SRT. End-to-end 128/256 bit AES encryption makes sure your content is protected from contribution to distribution.

Clip Continuous Recording

This function enables you to store a number of shots together as a single clip file. Instead of having to manage enormous amounts of files, or browsing through dozens of separate files just to gather up the scene you need, you can use pre- grouped clips for easier transfer and editing.

Exchange Format

The Sports Video Interoperability Group made “Exchange Format 1080p/720p” that allows video and metadata to be used across different applications.

Specifications

General Specifications

• Power: DC12V (AC adapter), DC7.2V (battery)
• Power consumption: Approx. 24W
• Dimensions (W x H x D): 188 mm x 227mm x 437mm (with hood and viewfinder)
• Weight: 9.2lb (3.6kg with hood and battery, without wireless LAN antenna unit)
• Moisture protection: Weather resistant

Camera

• Image sensor: 1″ (effective) CMOS, effective number of pixels: approx 9.35 million
• Stabilizer: Optical image stabilizer
• Sensitivity: F11 at 2000lx 89.9% reflectance
• Lens: F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent))
• Filter diameter: 82mm
• Shutter speed: 1/6 to 1/10000
• ND filter: Off, 1/4, 1/16, 1/64
• Viewfinder: 0.4″ LCOS Quad VGA (1280 x 960), 1280 x 720 at 16:9
• LCD monitor: 3.97″ LCD /WVGA (800 x 480), 800 x 450 at 16:9

Video/Audio Recording

• Recording media
• SDHC/SDXC memory card x 2: 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (50Mbps): Class 10, HD (35Mbps): Class 6
• SD: Class 4, High-Speed: UHS-1 U3
• SSD (M.2) with optional media case by JVC
• Video codec: Apple ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)*
• File format: MOV, MP4
• 4K UHD 60p/50p: 3840 x 2160, Apple ProRes 422 HQ/Apple ProRes 422/Apple ProRes 422 LT, 10-bit
• 4K UHD 30p/25p/24p (H.264): 3840 x 2160, 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps
• HD (H.264): 1920 x 1080/1280 x 720, 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps – 8Mbps
• SD (H.264): 720 x 480 (U model)/720 x 576 (E/EU model), 8Mbps
• Proxy (H.264): 960 x 540/480 x 270, 3 – 1.2Mbps
• Audio recording: LPCM 2ch, 48kHz/16-bit (MOV), µ-Law 2ch (Proxy), AAC 2ch (MP4)

Live Audio Streaming

• Protocol: RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP
• Resolution and bit rate
• 1920 x 1080 (59.94p/50p) 20 – 8Mbps, (29.97p/25p) 20 – 3Mbps, 1920 x 1080 (59.94i/50i) 20 – 3Mbps
• 1280 x 720 (59.94p/50p) 20 – 3Mbps, 1280 x 720 (29.97p/25p) 8 – 1.5Mbps
• 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 – 0.3Mbps

Interfaces

• Video output
• 3G-SDI output (BNC x 1)
• HDMI output x 1
• AV output (ø3.5mm mini jack x 1)
• Audio input: XLRx 2 (MIC, +48V/LINE), ø3.5mm mini jack x 1
• Audio output: AV output (ø3.5mm mini jack x 1)
• Headphone: ø3.5mm mini jack x 1
• Remote: ø2.5mm mini jack x 1
• Time code input/output: RCA
• USB: HOST x 1 (network connection)
• Ethernet: RJ-45 x 1
• Built-in slot: Optional SSD media case and for future expansion
