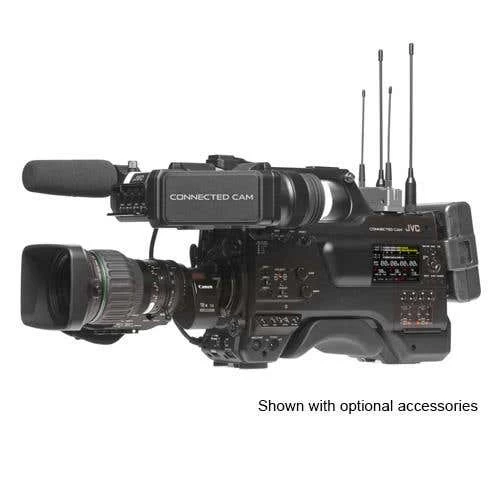

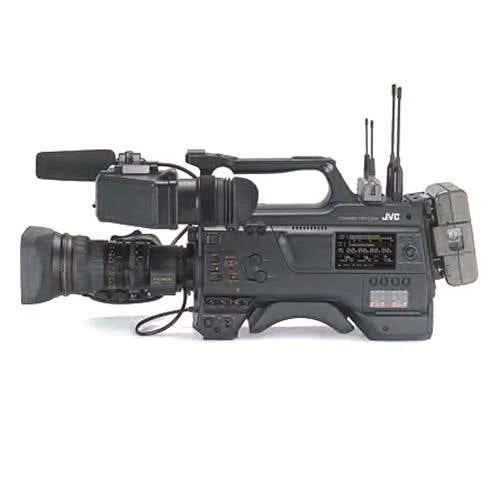

JVC 2 /3-In Broadcast Camcorder W/ Canon B4 20x Lens (GY-HC900C20)

JVC’s GY-HC900C20 HD Broadcast Connected Cam, a camera that offers a level of connectivity like no other! A unique and innovative broadcast camcorder, the GY-HC900CHU delivers high sensitivity, low noise, and a wide dynamic range with three 2/3 inch CMOS image sensors. The powerful on board communications engine makes news over IP a reality optimizing image processing and IP performance. The engine enables simultaneous recording, low latency streaming, and simultaneous decoding for return video and IFB. Latency can be as low as 500ms for both outgoing and incoming video.

Designed with ENG in mind the GY-HC900CHU delivers a stunning 20 mbps with SMPTE 2022 forward and Zixi error correction assuring reliable transmission. The camera body features an industry standard B4 Lens mount, OLED viewfinder, IPX2 splash-proof rating, a LAN terminal, USB 3.0 host port and dual SD card slots. With the C20 version you also receive a 20x Canon Lens!

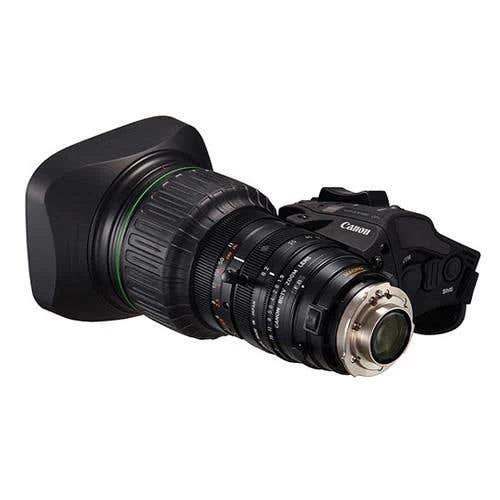

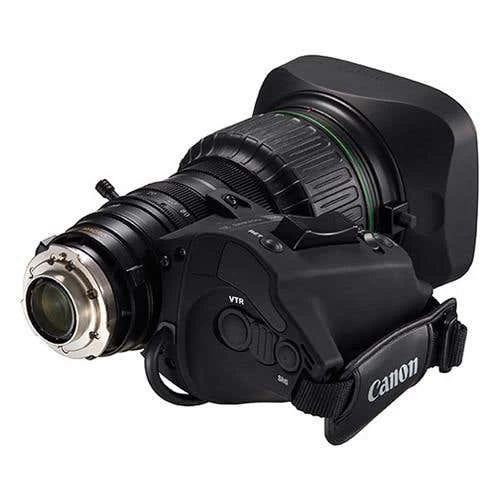

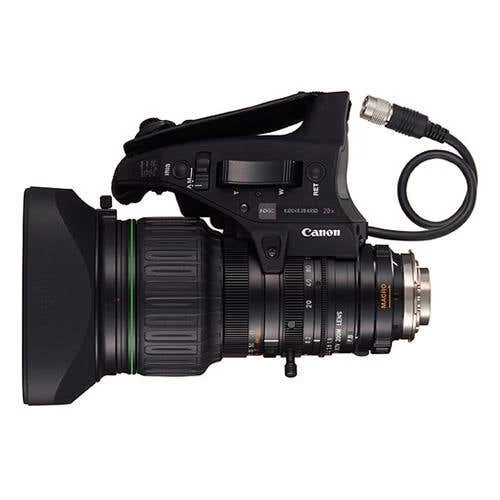

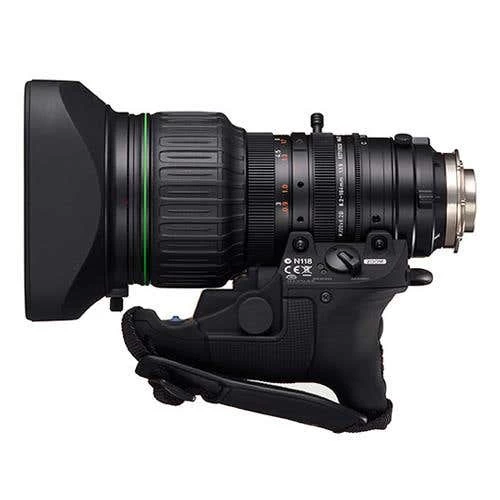

Canon 20x Zoom Lens

The Canon KJ20x8.2B KRSD 20x lens is ideal for wedding, corporate, and educational videographers, and will also play a vital role in broadcast news productions, which require an exacting level of performance. The KJ20x8.2B KRSD will help maximize your talents and deliver high-caliber production value to your projects.

Features:

• One HDMI
• One composite
• Two 3G-SDI outputs
• One 3G-SDI pool input
• A 68-pin fiber connector
• Two 3-pin XLR and one 5-pin XLR audio connectors
• Additional slot for potential future expansion
• Lan terminal
• USB 3.0 Host Port
• Dual SD card slots
• 3 x 2/3″ CMOS Image Sensors
• Sports Exchange Standard 1080/720p
• Live Stream in 1080p60/50
• Records 50 Mb/s Long GOP 10-Bit 4:2:2
• Records 35 Mb/s Standard MPEG-2
• 62 dB S/N Ratio in Standard Mode
• Industry-Standard B4 Lens Mount
• Dual SDXC Media Recording
• 2 x 3G-SDI Out, 1 x 3G-SDI Pool In

VC GY-HC900CHU:

• Accessory Mount: Not Specified by Manufacturer
• Tripod Mount: VCT-14
• Dimensions: 14.41 x 10.59 x 6.5″ / 366 x 269 x 165 mm
• Weight: 8.60 lb / 3.9 kg

Imaging:

• Image Sensor: 3-Chip 2/3″ CMOS Sensor
• Sensor Resolution: 2.2 MP
• Gain: Not Specified by Manufacturer
• Signal-to-Noise Ratio: 62 dB
• White Balance Range: Not Specified by Manufacturer

Lens:

• Focal Length: 4.7 to 97mm
• Optical Zoom Ratio: 20x
• Maximum Aperture: f/1.4 to 1.5
• Control Rings: Focus Ring; Zoom Ring
• Focus Control: Autofocus; Manual Focus

Camera:

• Lens Mount: B4 Mount
• Shutter Speed: 1/6 to 1/10,000 sec
• Built-In ND Filter: Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
• Built-In Microphone Type: None
• Recording Media: 2 x SDXC Card Slots

Recording:

• Broadcast System Compatibility: NTSC, PAL
• Recording Modes: MPEG2 1920 x 1080p at 25, 29.97, 50, 59.94 fps (35 Mb/s); 1920 x 1080i at 50, 59.94 fps (35 Mb/s)
• H.264 4:2:2 10-Bit: 1920 x 1080p at 25, 29.97, 50, 59.94, 120 fps (35 to 50 Mb/s); 1920 x 1080i at 50, 59.94 fps (35 to 50 Mb/s); 1280 x 720p at 25, 29.97, 50, 59.94 fps (35 to 50 Mb/s)
• Variable Frame Rates: 1080p60: 25 to 120 fps
• Audio Recording: 4-Channel 16-Bit 48.0 kHz; 2-Channel 16-Bit 48.0 kHz
• IP Streaming: MPEG2, RTMP, RTP, RTSP, UDP, ZIXI: 640 x 360 to 1920 x 1080 at 25p, 29.97p, 50i, 50p, 59.94i, 59.94p (0.3 to 20.00 Mb/s)

Interfaces:

• Video Connectors: 1 x BNC (3G-SDI) Input; 2 x BNC (3G-SDI) Output; 1 x HDMI Output; 1 x BNC (Composite) Output
• Audio Connectors: 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input/Output; 1 x 5-Pin XLR Mic Level Input
• Other I/O: 1 x BNC Genlock Input; 1 x BNC Timecode Input/Output; 1 x 6-PinControl; 1 x RJ45Data

Display:

• Display Type: LCD
• Screen Size: 3.5″
• EVF Display Type: OLED
• Screen Size: 3.26″
• EVF Resolution: 854 x 480

Power:

• Power Connectors: 1 x 4-Pin XLR Input; 2 x 4-Pin LEMO Output; 1 x D-Tap Output

Canon KJ20x8.2B KRSD:

• Object Image Format: 2/3-inch
• Aspect Ratio: 16:9
• Object Image size: 9.59 mm (H) x 5.39 mm (V)
• Zoom Ratio: 20x
• Focal Length Range: 8.2-164mm

Angular Field of View:

• 60.7° x 36.5° at 8.2mm
• 3.4° x 1.9° at 164mm

Optical Brightness:

• Maximum Relative: 1:1.9 at 8.2-115.4mm
• Aperture (F-Number) 1:2.7 at 164mm (Ramping Characteristic)

Scene Composition:

• MOD From Front of Lens: 0.9m (10mm with Macro)
• Scene Object Dimensions at MOD: 98.2 x 55.2cm at 8.2mm / 5.0 x 2.8cm at 164mm

Physical Attributes:

• Width: 163.3mm
• Height: 103mm
• Size Length mm mod: 181.8mm
• Weight: 1.25kg
