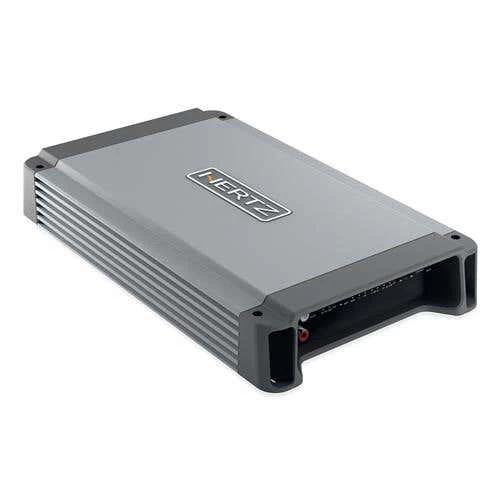

Hertz HCP 1MDK Class D 1240W Mono Amplifier (HCP1MDK)

HCP 1MDK – Ch:1 | 1240W

HCP 1MDK mono marine amplifier features latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 740 W x 1 (4 Ω). Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust), HCP 1MDK features a compact design built from extruded aluminium heatsink with top side ensuring effective heat transfer.

The special balanced input circuitry reject electro-magnetic disturbances and the Hi-Level and lo-level inputs are compatible with any source. The Adjustable Bass Boost (50 Hz) with continuity between 0 dB and 6 dB adds more punch to subwoofer and SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signal to prevent damage to the subwoofer. The continuously adjustable PHASE control (0 to 180°) optimizes alignment of woofer bass frequencies with sub ones. The Optional Remote Volume Control (HRC) provides the ability to adjust subwoofer volume level from the dashboard.

Highlights

• Output Power (RMS) : 740 W x 1 (4 ohm) / 1240 W x 1 (2 ohm)
• Adjustable PHASE control (0 to 180°)
• SUBSONIC filter (24 dB – 25 Hz)
• Adjustable Bass Boost (50 Hz)
• Hi-Level and lo-level inputs compatible
• Compact design built from extruded aluminium heatsink

Technologies

Hi Power 2 Ohm Stable

Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable output stage.

Corrosion Protection

Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.

Water Jet Tested

The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Latest Generation D-Class

Latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 150 W x 4 with the excellent S/N ratio of 105 dB.

Salt Fog Tested

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
