DJI Transmission
- 20,000ft 1080p/60fps Transmission
- Seamless Auto Frequency Hopping
- End-to-End Ultra-Low Latency
- Integrated Wireless Receiver
- Gimbal/Focus/Camera Control
- Independent Recording and Playback
Take a Closer Look
Long-Distance HD Live Feed
O3 Pro video transmission technology offers an incredible 6km/20,000ft [1] transmission distance. It also supports transmission at 1080p/60fps.

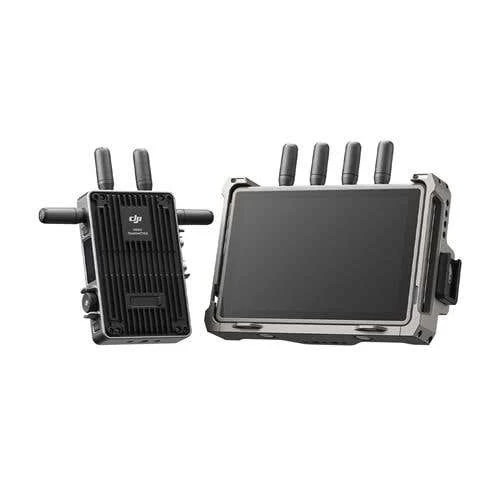

Integrated Wireless Receiver
Integrating monitor and receiver with many expansion features.
End-to-End Ultra-Low Latency
Uses the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.
Triple-Band Seamless Auto Hopping
Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS. It also automatically scans the electromagnetic environment for the optimal wireless channel.
Remote Gimbal/Focus/Camera Control
When used with devices like Ronin 4D Hand Grips or DJI Master Wheels, [2] you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.
Specifications | |
| Operating Frequency | Non DFS Frequency Band: DFS Frequency Band: |
| Transmitter Power (EIRP) | 2.4000-2.4835 GHz: 5.150-5.250 GHz: 5.250-5.350 GHz: 5.470-5.600 GHz, 5.650-5.725 GHz: 5.725-5.850 GHz: |
| Max Bandwidth | 40 MHz |
| Max Bitrate | 50 Mbps |
| Power Consumption | 11 W |
| Power Supply Voltage | 6 to 18 V |
| Output Voltage | Power Output Port: 6 to 18 V |
| Operating Time | Video Transmitter: 3 hours 40 minutes [3] High-Bright Remote Monitor: 2 hours [3] |
| Input Video Format | 3G SDI: YCbCr 4:2:2 10-bit HDMI RGB 4:4:4 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/59.94/60fps 720p: 50/59.94/60fps |
| Output Video Format | 3G SDI: YCbCr 4:2:2 10-bit 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/59.94/60fps 720p: 50/59.94/60fps |
| Input Audio Format | SDI embedded, HDMI embedded |
| Output Audio Format | PCM |
| Video Transmission System | O3 Pro |
| Max Video Bitrate | 50 Mbps |
| Video Transmission Latency | 68 ms [4] 100 ms [5] |
| Video Coding Format | H.264 |
| Max Transmission Distance | 6 km (FCC) [6] 4 km (CE/SRRC/MIC) [6] |
| Max Bandwidth | 40 MHz |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Mirror Control Mode Supported Camera Models | ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control). |
1. Measured in Control mode with FCC compliance in a standard, interference-free environment.
2. Sold separately.
3. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
4. Measured when shooting 1080p/60fps video.
5. Measured when shooting 1080p/24fps video.
6. In open environments free of obstructions or interference.
