Denon PMA-1700NE Integrated Amplifier With Advanced AL32 Processing – Black (PMA1700NE)
Original price was: $315.00.$98.99Current price is: $98.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On

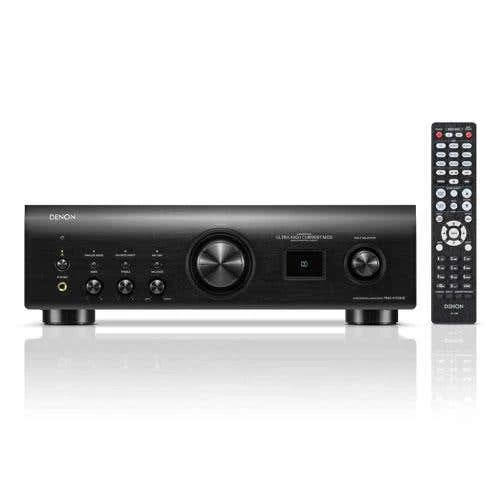

PMA-1700NE Integrated Amplifier
Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.
Powerful sound from an integrated amplifier
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.
Faithful audio reproduction
dvanced AL32 Processing Plus delivers the richly detailed sound the artist intended.
Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
Specifications | |
| Rated Output Power | 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%) |
| Speaker Impedance | A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm |
| Frequency Response | 5Hz – 100kHz (0~ -3dB) |
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Dumping Factor | 100 and over |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 |
| RIAA Deviation | 20 Hz – 20 kHz ±0.5 dB (MM/MC) |
| Phono Maximum Input | MM : 130mV / 1kHz MC : 10mV / 1kHz |
| Input Sensitivity: CD/LINE/RECORDER | 125 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.85V / 47kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB) |
| Tone Control | BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB |
| Power Consumption | 295W |
| at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
Audio Feature | |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Power Trans | Dual El Core |
| Pre Amplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Volume | Electric (MUSES 72323) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Type of Tone Control | Electric Controlled by Potentiometer |
| Headphone Circuit | Use Poweramplifier |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| DAC Circuit | PCM1795 |
| Digital Filter | Fixed |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
| Asyncronous mode (for USB-B input) | Yes |
| Isolator (for USB-B input) | Yes. Full Isolation |
Connectivity | |
| Phono Input | Yes (MM / MC) *default=MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER) |
| Optical input / output (Maximum Support) | 2 / 0 (192kHz/24bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192kHz/24bit) |
| Ext. Pre Input (Power Amp Direct) | Yes(Ext.Pre) |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Speaker Terminal | Gold Plated |
| Headphone Output | 1 (Turn off the speaker when inserting headphone) |
| Remote Control Bus Terminal | Yes (mini) |
| AC Inlet | Yes |
| WiFi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| WiFi | No |
| Module or Main device | New XMOS (XU210-256-TQ128 ) |
| PCM Sample Rate | ~384kHz/32bit |
| DSD Audio Streaming (DoP) | ~11.2MHz |
| Roon Certificaton | Yes(Roon Tested) |
| Brand | Denon |
|---|---|
| USB Port(s) | 1 – (Rear) |
| Depth (in.) | 16.1 |
| Height (in.) | 5.3 |
| Width (in.) | 17.1 |
| Product Parts Warranty | 3 Year Limited Through Manufacturer |
| Product Labour Warranty | 3 Year Limited Through Manufacturer |
| Wi-Fi / Bluetooth Connectivity | No |
| Headphone / Line Output(s) | 1 |
| Number of Channels | 2 |
| Coaxial Digital Audio Input(s) | 1 |
| Optical Digital Audio Input(s) | 2 |
| Pre-amp Input / Phono Input | Yes |
| Analog Audio Output(s) (RCA Outputs) | 1 |
| Analog Audio Input(s) (RCA Inputs) | 4 |
| Amplifier Power | 70 Watts per Channel (@ 8 ohms) |
| Weight (lbs) | 38.8 |
