Denon 9.4 Ch 8K AV Home Theatre Receiver (AVRX4800H)

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.

Enveloping 3D audio

Feel like you’re in the center of the action with enveloping 3D sound.

Expert ready

Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship

Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.

Optimize for your room

Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).

Technical Specifications

Multichannel Surround

• DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
• DTS Neo:X, DTS Neural:X No, Yes
• DTS Virtual:X Yes
• IMAX Enhanced Yes
• Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
• Dolby ProLogic Ilz, Dolby Surround No, Yes
• Auro 3D Yes
• 360 Reality Audio / MPEG H Yes, Yes
• Multichannel Stereo Yes
• Max. Number of Processing (Pre-Amp) Channels 11.4

Sound Enhancements

• Discrete Power Amplifier Yes
• D.D.S.C. HD Digital Yes (32 bit)
• Pure Direct Yes
• Clock Jitter Reducer Yes
• Alpha Processing AL32 Processing Multichannel
• Audyssey MultEQ XT32
• Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
• Audyssey LFC Yes
• Dirac Live Upgradability Yes
• Compressed Audio Restorer Yes

Network

• Media Server Yes
• HEOS Wireless Multi-Room Technology Yes
• Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
• Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
• Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
• Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
• DSD Audio Streaming Yes (2.8/5.6MHz)
• AirPlay 2 Yes
• TuneIn Yes
• Spotify Connect Yes
• Pandora Yes
• SiriusXM* Yes
• Roon Tested Yes
• HEOS App Control Yes
• Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
• Ethernet Ports Yes
• Wi-Fi Yes
• Bluetooth Yes

HDMI

• HDMI Inputs: Back, Front 7, No
• HDCP2.3 support Yes
• HDMI Outputs: Main, Zone 2, 1
• HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
• HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
• ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
• Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
• 3D Signal Pass-through Yes
• 8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
• DSD Audio Capability Yes
• Audio Return Channel (ARC), Enhanced ARC Yes, Yes
• Auto LipSync Yes

Multi-room CI

• Multi-Room Zones 3
• Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
• Zone Audio Output: Speaker, Pre-Out Yes, Yes
• Zone HDMI Output from HDMI Source Yes
• IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
• Remote In / Out Yes, Yes
• DC Trigger Output 3
• HDMI Diagnostics Yes

Others

• Auto Speaker Setup by Microphone Audyssey MultEQ XT32
  Dirac Live (upgrade)
• Front Display 2-Line FLD
• GUI Languages 3
• Setup Assistent Yes
• Quick Select Plus, Quick Select Yes, No
• Variable Crossover Yes
• Optimized Bass Redirection Yes
• Bass Sync Yes
• ECO Mode Yes
• Auto Power Off Yes
• Sleep Timer Yes

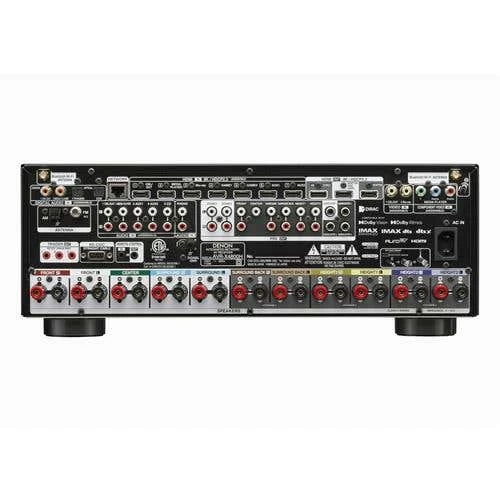

Inputs Outputs

• HDMI In, Out 7, 3
• Multi-Room Video Out: Video, HDMI No, Yes
• Analog In, Out 5, No
• Phono (MM) In Yes
• Digital In: Optical, Coaxial 2, 2
• Multi-Room Out: Analog, Digital 2, No
• Multichannel Preout Yes (11.4)
• Subwoofer Out 4 (independent)
• Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
• Number of Speaker Terminals 11
• Speaker A / B Assignable
• Bi-amp Drive Assignable
• Multi-Room Speaker Terminal Assignable
• Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
• USB Audio, Made for iPod, Made for iPhone Yes, No, No
• AM/FM Tuner Yes

Specifications

• Number of Power Amps 9
• Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) 125W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 235W

General

• Metal Front Panel Yes
• System Remote Control RC-1252
• Pre-Programmed, Learnable, LCD Display Yes, No, No
• Power Consumption in W 710
• Power Consumption No-Sound (ECO On / Off) in W 65W/110W
• Standby Consumption in W 0.1
• CEC Standby Consumption in W 0.5
• Network Standby Consumption in W Less than 2.0
• Maximum Dimensions
• Antenna: Horizontal: (W x D x H) in Inches 17.1 x 15.3 x 6.6
• Antenna: Vertical: (W x D x H) in Inches ( 17.1 x 15.3 x 9.3 )
• W/O Antenna: (W x D x H) in Inches 【 17.1 x 14.9 x 6.6 】
• Weight in LBS 29.1
• Weight in LBS (Packaging) 34.9
