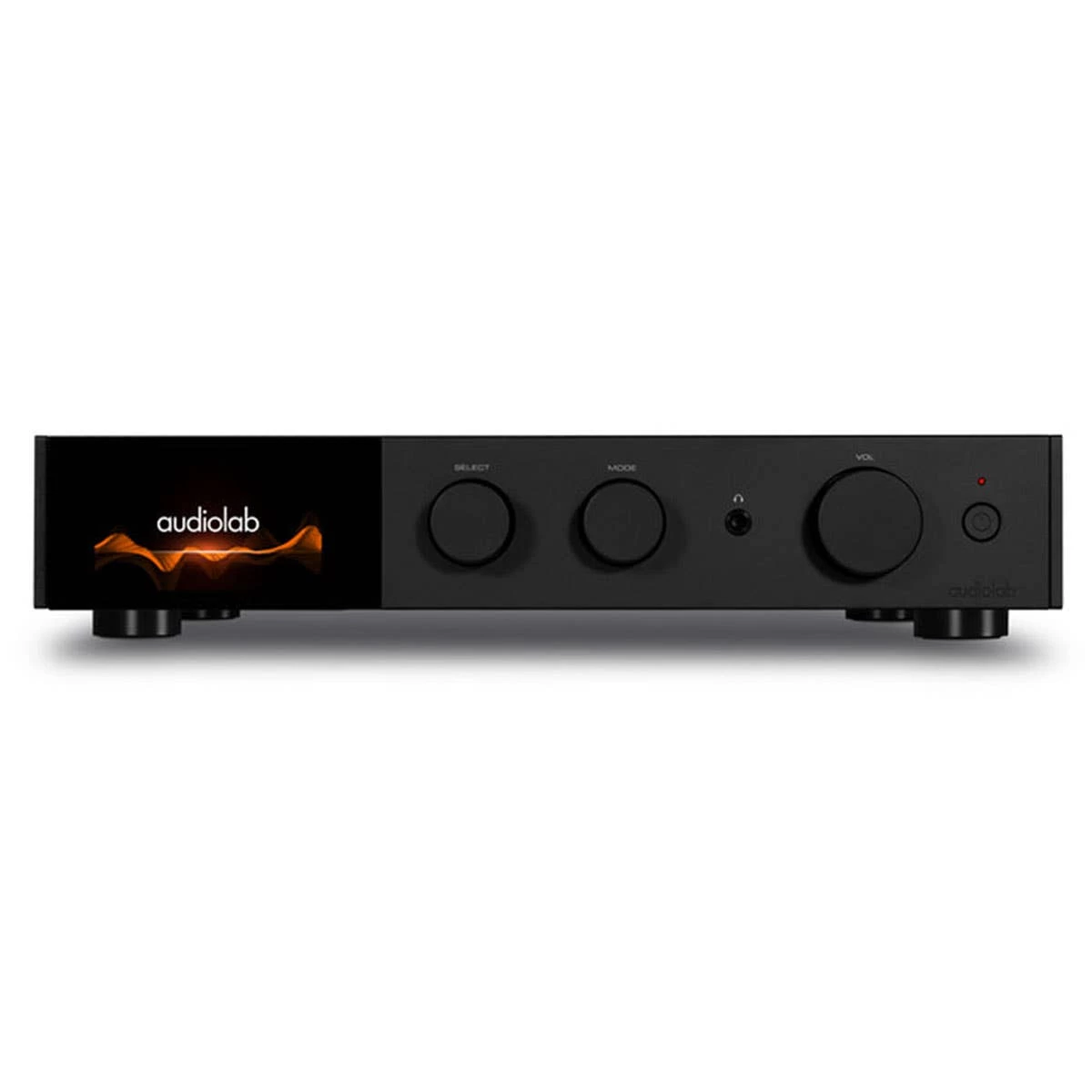

Audiolab 9000A Integrated Amplifier – Black (9000ABK)

   3 Modes of Operation

 Integrated Mode: This combines pre and power amp stages to power digital and analog sources to a pair of speakers.
 Pre-Power Mode: This disconnects the pre and power amp stages, turning the 9000A into a power amp for use with an external AV processor. You can also use this mode for additional signal processing, returning the processed audio to the 9000A’s power amp input to take advantage of the 100W per channel performance.
 Pre Mode: This disables the power amp stage, turning the 9000A into a standalone preamp that can be joined with an external power amplifier.

 Full-Color Display
  Built into the face of the 9000A is a 4.3″ full-color IPS LCD screen, which provides detailed information and convenient access to internal settings. View playback, source, and file information, and adjust menu options and tweak user-defined settings. Multiple default displays are included, such as two different types of VU meters.

 Hi-Res Audio Support
 A wide variety of hi-res audio formats are supported by the 9000A amplifier. PCM audio is supported up to 32-bit/768 kHz, DSD to 22.5 MHz (DSD512), as well as FLAC, ALAC, AIFF, and WAV. Conveniently, compressed and lossy legacy formats can also be played through the 9000A.
One additional hi-res format is MQA, which is made to stream content as the creator intended. The 9000A offers a custom-engineered MQA-certified DAC solution, which can complete the full “three unfold” MQA decoding process internally, which is ideal for subscribers of MQA content, such as Tidal’s HiFi Plus tier.

      Additional Features

     Digital file playback via USB-B connection
     Phono stage for vinyl playback
     Headphone output
     CFB (Complementary Feedback) topology for improved linearity and thermal stability
     320VA toroidal transformer and 4 x 15,000uF reservoir capacity for firm control of music playback with optimized dynamic range
     Amp design protects the sensitive preamp stage from noise interference and coloration

Specifications and Features:

Input Sensitivity:               1Vrms (Line, Volume = 0dB); 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
Input Impedance:             110K (Line); 47K // 100pF (Phono MM)
Frequency Response:      20Hz-20kHz (+/-0.1dB)
Output Voltage:                 2.3V max. (Volume = 0dB)
Output Impedance:         120 ohms
Signal-to-Noise Ration (S/N):     > > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)

                    Product highlights:

• 100 watts x 2 channels into 8 ohms (20-20,000 Hz) at <1% THD
• 160 watts x 2 channels into 4 ohms (20-20,000 Hz)
• 4-ohm capability allows use with a wide range of speakers
  ES9038 Pro Sabre32/768kHz Reference 32-bit digital-to-analog converter for high-performance playback of digital sources
  high-current toroidal power transformer for clean playback and smooth handling of demanding speaker loads
• CFB (Complementary Feedback) topology ensures superior linearity and excellent thermal stability
• frequency response 20-20,000 Hz (±0.1dB)
• signal-to-noise ratio: 110 dB (Line & XLR), 80 dB (Phono MM)
• THD: 0.0004% (1kHz @ 2V, Volume = 0dB)
• built-in Bluetooth with aptX HD and LDAC audio coding (antenna included)
• 4.3″ color LCD display with real-time VU meters
• remote control included
• detachable power cord

       Connections:

• 2 optical and 2 coaxial digital audio inputs (192kHz max. sampling rate)
• 4 analog RCA line-level stereo inputs
• RCA phono input for use with a moving magnet cartridge
• stereo RCA line-level preamp output
• balanced stereo XLR input
• USB Type-B to connect to a computer (handles PCM files up to 768kHz resolution and DSD512)
• USB Type-A port for firmware updates
• built-in headphone amplifier with front-panel full-size (1/4-inch) jack
• one pair of binding posts for speakers
• 12-volt trigger in and out
