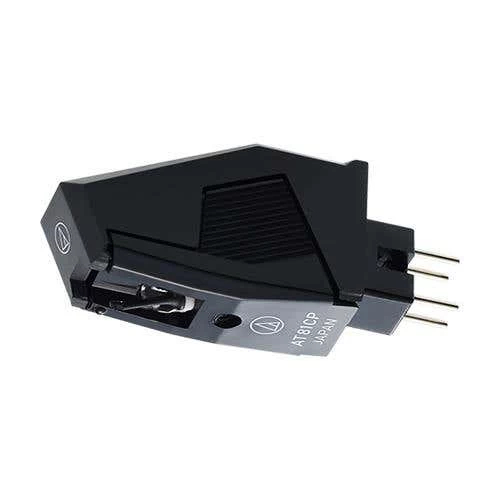

This 0.6 mil conical cartridge fits P-mount turntables.
Cartridge & Stylus Technical Specifications:
- Frequency Response: 20-20,000 Hz
- Channel Separation: 18 (dB at 1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.0-1.5 g (1.25 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 2.8 k ohms (1 kHz)
- DC Resistance: 410 ohms
- Coil Inductance: 400 mH (1 kHz)
- Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 2.5 dB (1 kHz)
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Mounting: P-mount
- Dimensions: 15.3 mm (0.60″) H × 10.0 mm (0.39″) W × 35.1 mm (1.38″) D
- Mounting Feature: P-mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: ATN81CP
- Stylus Size: 0.6 mil
- Type: Dual Magnet
- Weight: 6.0 g (0.21 oz)
