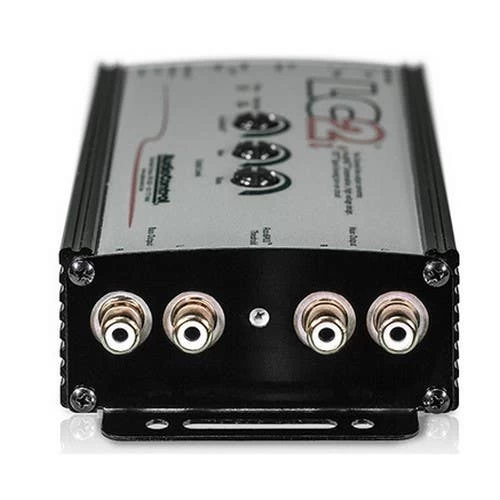

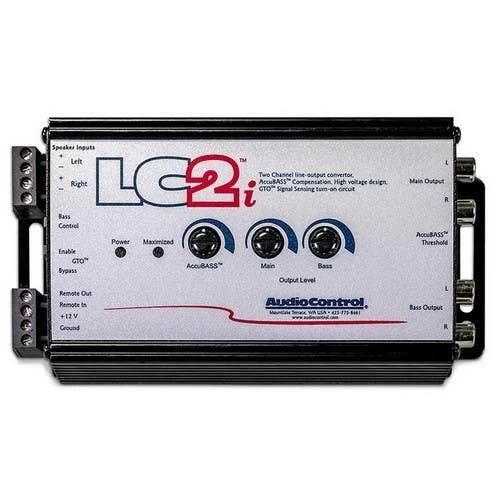

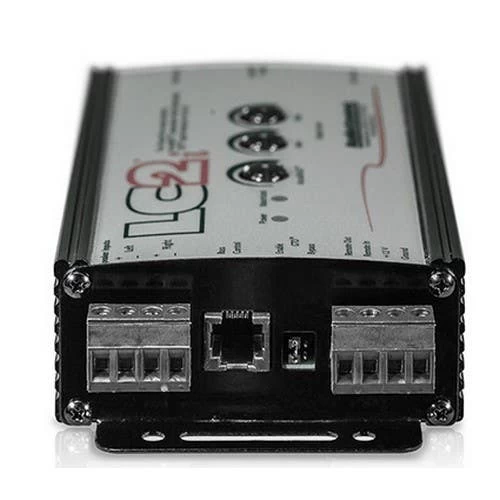

Audio Control LC2i Active 2 Channel Converter With AccuBASS (LC2I)

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Audio Control 2 Channel Converter with AccuBASS™ Features:
• Two channels of Active speaker level inputs – Accept 400 watt signals per channel
• Fixed and variable outputs with discrete level controls
• AccuBASS™ processing for correction of bass roll-off
• Input For Optional Remote Level Control
• Compact design

Specifications:
Inputs:
• Speaker Level Input: 1 (2 channels)
• Maximum Speaker Level Input: 400W per channel at 4Ω
• Input Impedance: 20kΩ

Outputs:
• Preamp Outputs: 2 (2 channels main, 2 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Impedance: 150Ω

Performance:
• Total Harmonic Distortion: 0.01%
• Signal to Noise: >110dB
• Frequency Response: 10Hz-100kHz ±1 dB

Control:
• Remote In
• 12VDC Remote Out (always active when unit is on)

General:
• Current Draw: 150mA
• Recommended Fuse Rating: 1A
