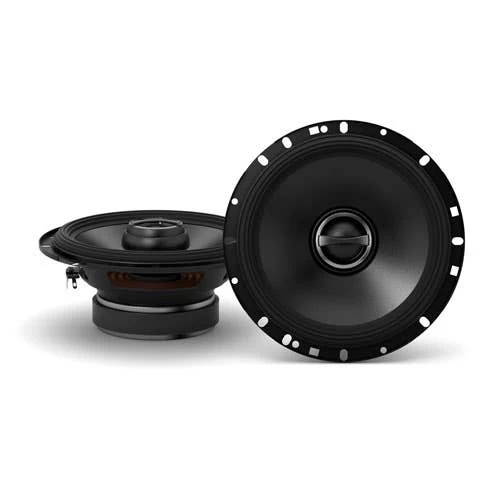

Alpine S-Series 6.5″ (16.5 Cm) Coaxial 2-Way Speakers (SS65A)
Original price was: $148.00.$99.99Current price is: $99.99.
- 7 days free returns
- Safe Transactions, Happy Customers
- Protecting Your Payment Information
- Quality You Can Count On
The S-Series delivers amazingly high performance for this class of speaker. They boast the world’s first use of a CFRP diaphragm (Carbon Fiber Reinforced Plastic), which has the ideal balance of hardness and light-weight, for extremely clean and accurate sound. They also feature a larger voice coil than previous types for higher driving power, and the same HAMR surround as used on the X-Series.
Introducing the S-Series speaker line
The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.
HAMR Surround
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.
Powerful Speaker Motor
The S-Series speakers have a large voice coil. The 6.5-inch and 6×9-inch models for example feature a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor.
CFRP Cone
The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.
Protect Your Speakers
Speaker grilles are available for several of the S-Series speakers and are sold separately. The durable mesh grilles are sold in pairs.
Highlights
Woofer
- CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
- HAMR (High Amplitude Multi-Roll) Surround
- Large 35mm Voice Coil
- Magnet Material: Ferrite
- Grill sold separately: KTE-S65G
Tweeter
- Tweeter Type: 1″ Wide-Range Silk Dome
- Magnet Material: Neodymium
Crossover Network
- Grade: 2nd order Network Design
Specifications
Power Handling
- Peak Power: 240 Watts
- RMS Power: 80 Watts (CTA-2031 Compliant)
Dimensions Woofer
- Frame 165 mm
- Mounting Depth: 57.7 mm
- Mounting Height: 19.5 mm
- Magnet: 90.0 mm
General
- Frequency Range: 70 Hz – 22 kHz
- Impedance: 4 Ohms
- Sensitivity: 88 dB/W
| Brand | Alpine |
|---|---|
| Speaker Size (Car Speakers) | 6.5" |
| Speaker Type | 2-way Coaxial |
| Power Handling (Car Speakers) | 240W Peak / 80W RMS |
| Frequency Response (Car Speakers) | 70 Hz – 22 kHz |
| Impedance (Car Speakers) | 4 Ω |
| Tweeter Size (Car Speakers) | 1" |
| Mounting Depth (Speakers) | 57.7mm |
| Sensitivity (Car Speakers) | ≥88 dB |
| Product Labour Warranty | 1 Year Limited |
| Product Parts Warranty | 1 Year Limited |
| Width (in.) | 6.5 |
| Weight (lbs) | 2 |
| Depth (in.) | 2.27 |
| Height (in.) | 6.5 |
